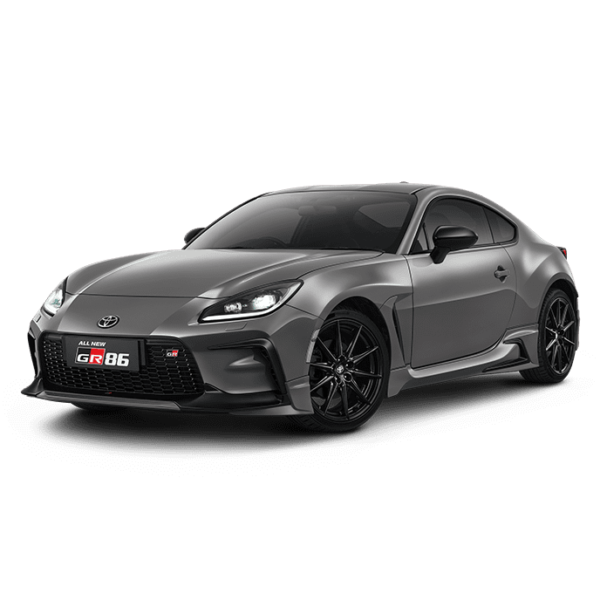

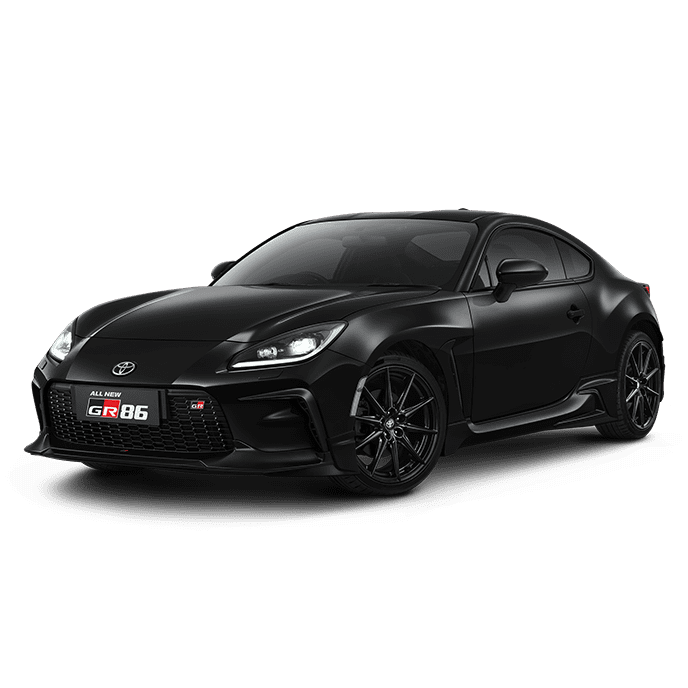

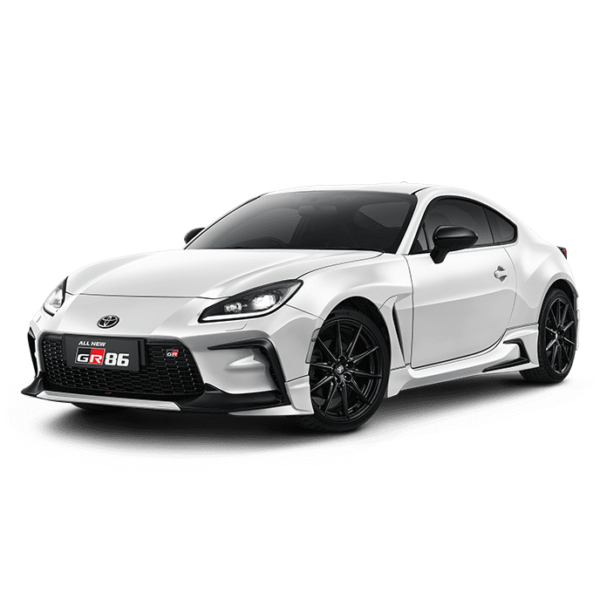

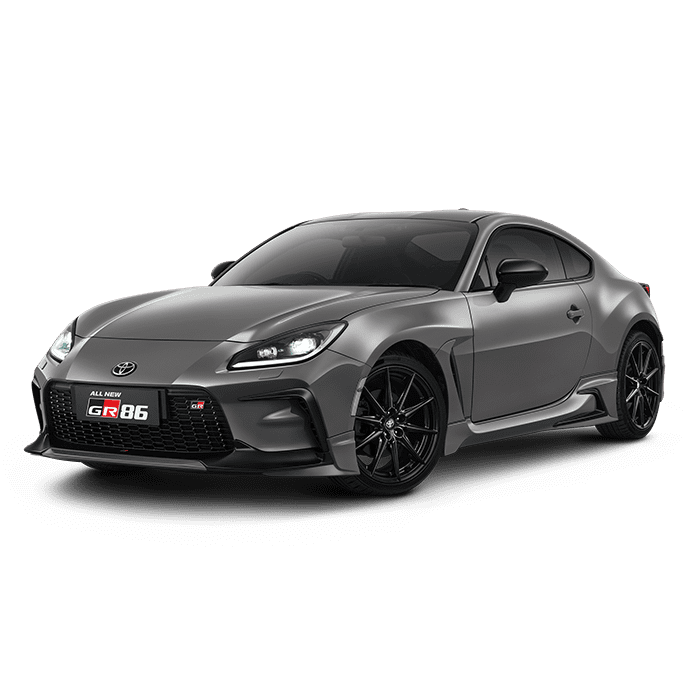

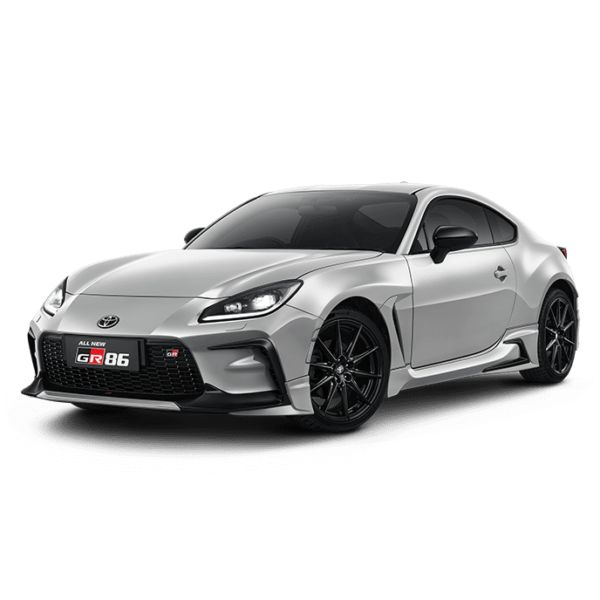

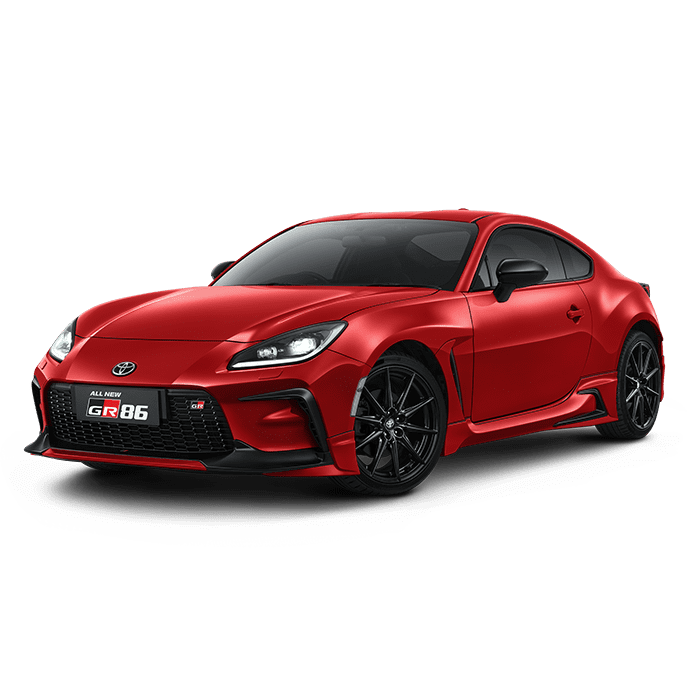

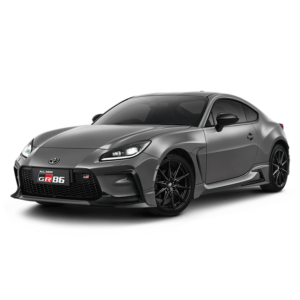

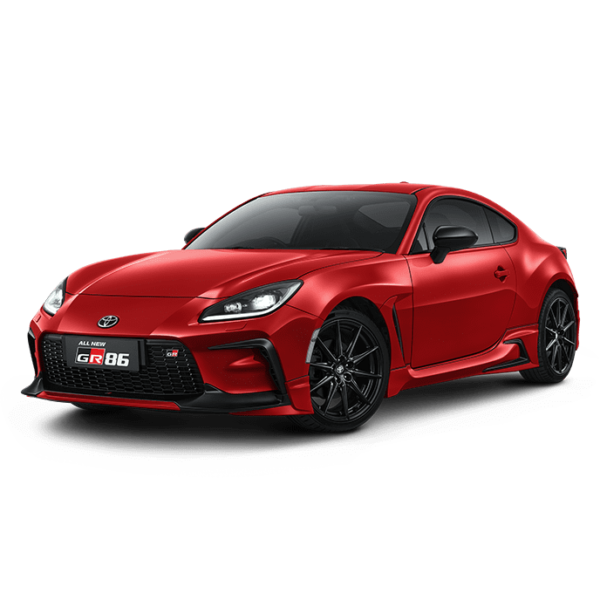

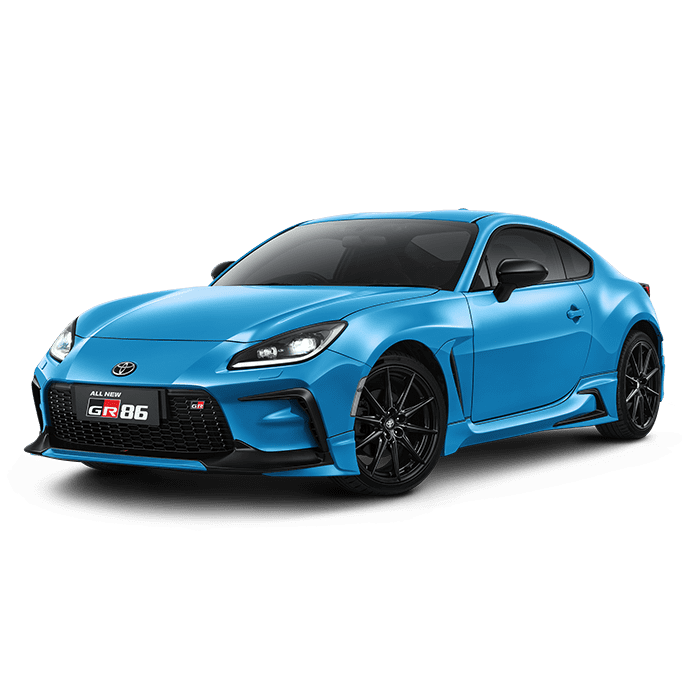

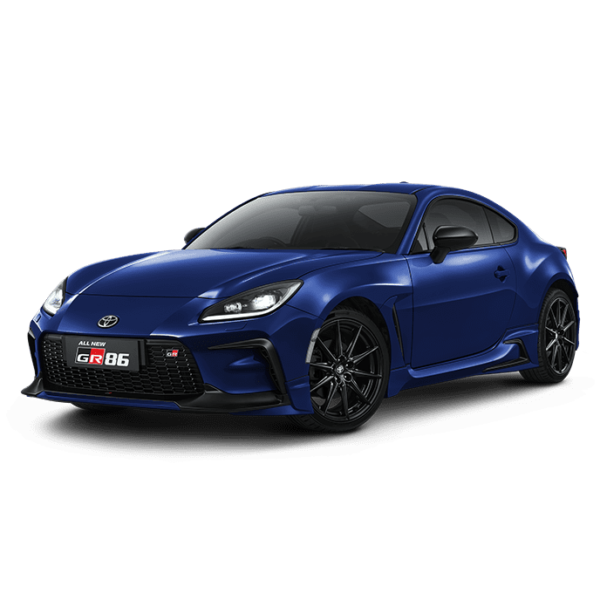

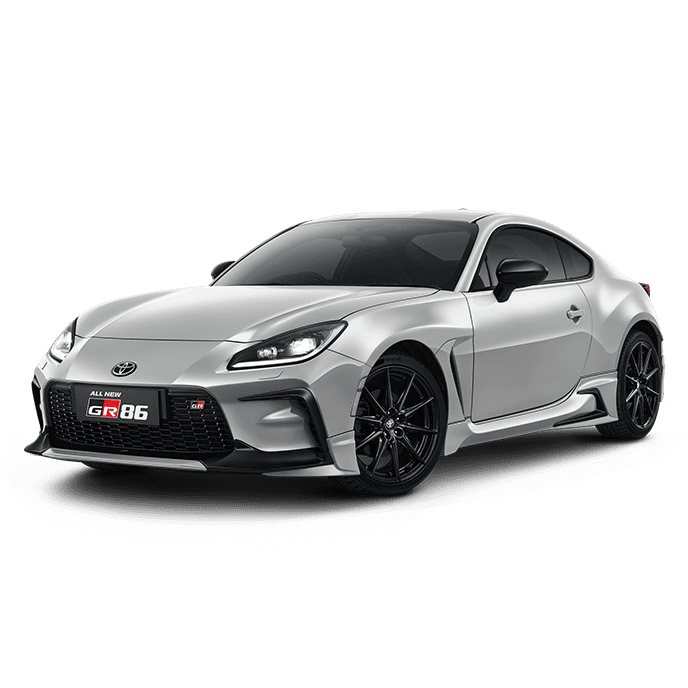

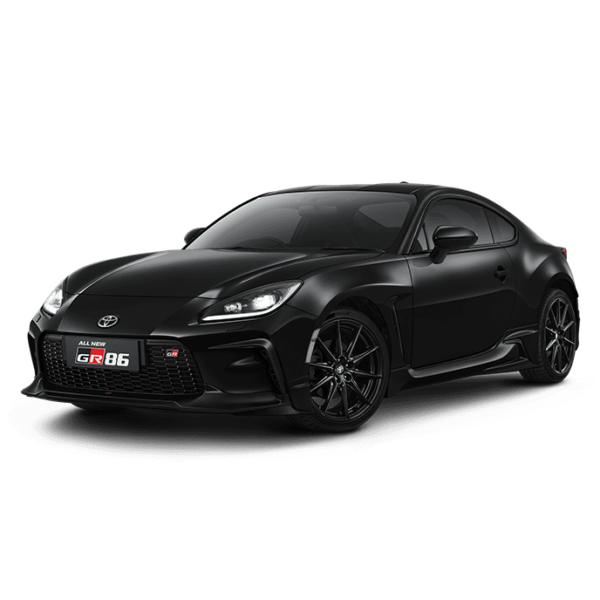

NEW TOYOTA GR 86

Overall Panjang / Length (mm)	4.265	4.265
Overall Lebar / Width (mm)	1.775	1.775
Overall Tinggi / Height (mm)	1.310	1.310
Jarak Poros Roda / Wheelbase (mm)	2.575	2.575
Jarak Pijak Depan / Front Tread (mm)	1.520	1.520
Jarak Pijak Belakang / Rear Tread (mm)	1.550	1.550
Jarak Terendah / Ground Clearance (mm)	130	130
Curb Weight (kg)	1.271 – 1.275	1.271 – 1.275

Mesin / Engine	FA24	FA24
Tipe Mesin / Engine Type	4-cylinders, horizontally-opposed, DOHC, 16-valves	4-cylinders, horizontally-opposed, DOHC, 16-valves
Isi Silinder / Displacement (cc)	2.387	2.387
Daya Maksimum / Maximum Output (kW (PS)/rpm)	173 (235) / 7.000	173 (235) / 7.000
Torsi Maksimum / Maximum Torque (Nm (kgf·m)/rpm)	250 (25,5) / 3.700	250 (25,5) / 3.700
Bahan Bakar / Fuel Type	Gasoline (Octane 98 RON or more)	Gasoline (Octane 98 RON or more)
Kapasitas Tangki / Fuel Tank Capacity (ltr)	50	50

Sistem Penggerak Roda / Drive System	FR (Front Engine, Rear Wheel Drive)	FR (Front Engine, Rear Wheel Drive)
Transmisi / Transmission Type	6-speed A/T	6-speed M/T
Diameter X Langkah / Bore X Stroke (mm x mm)	94 x 86	94 x 86
Rasio Kompresi / Compression Ratio	12,5 : 1	12,5 : 1
Perbandingan Gigi / Gear Ratio (1st)	3.538	3.626
Perbandingan Gigi / Gear Ratio (2nd)	2.060	2.189
Perbandingan Gigi / Gear Ratio (3rd)	1.405	1.541
Perbandingan Gigi / Gear Ratio (4th)	1.000	1.213
Perbandingan Gigi / Gear Ratio (5th)	0.713	1.000
Perbandingan Gigi / Gear Ratio (6th)	0.582	0.767
Perbandingan Gigi Mundur / Reverse Gear Ratio	3.168	3.438
Suspensi Depan / Front Suspension	MacPherson Strut	MacPherson Strut
Suspensi Belakang / Rear Suspension	Double Wishbone	Double Wishbone
Rem Depan / Front Brake	16″ Ventilated Disc	16″ Ventilated Disc
Rem Belakang / Rear Brake	15″ Ventilated Disc	15″ Ventilated Disc
Ukuran Ban / Tires Size	215/40 R18	215/40 R18
